ALU-FIX – Fixed Framed Glazing System

The main features of the ALU-FIX glazing system:

• Construction: aluminium, powder-coated (Qualicoat)
• Colors: RAL7016, 8019 - standard; others - according to ind. order

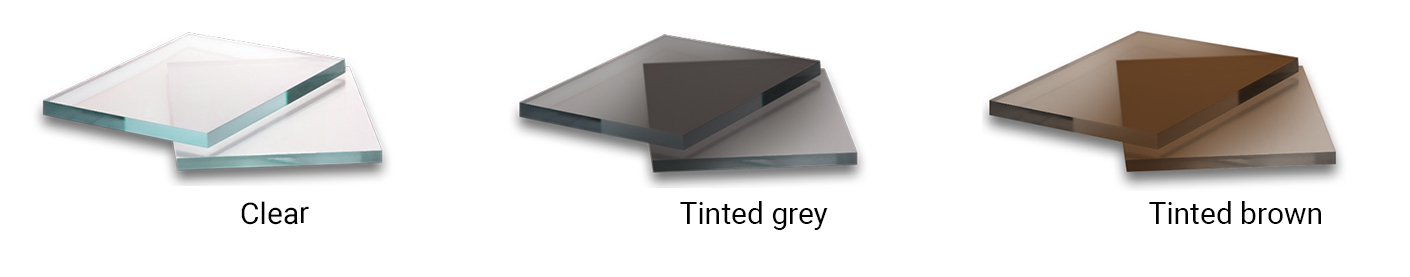

• Glass, tempered: 4 mm (standard offer) or 5 mm

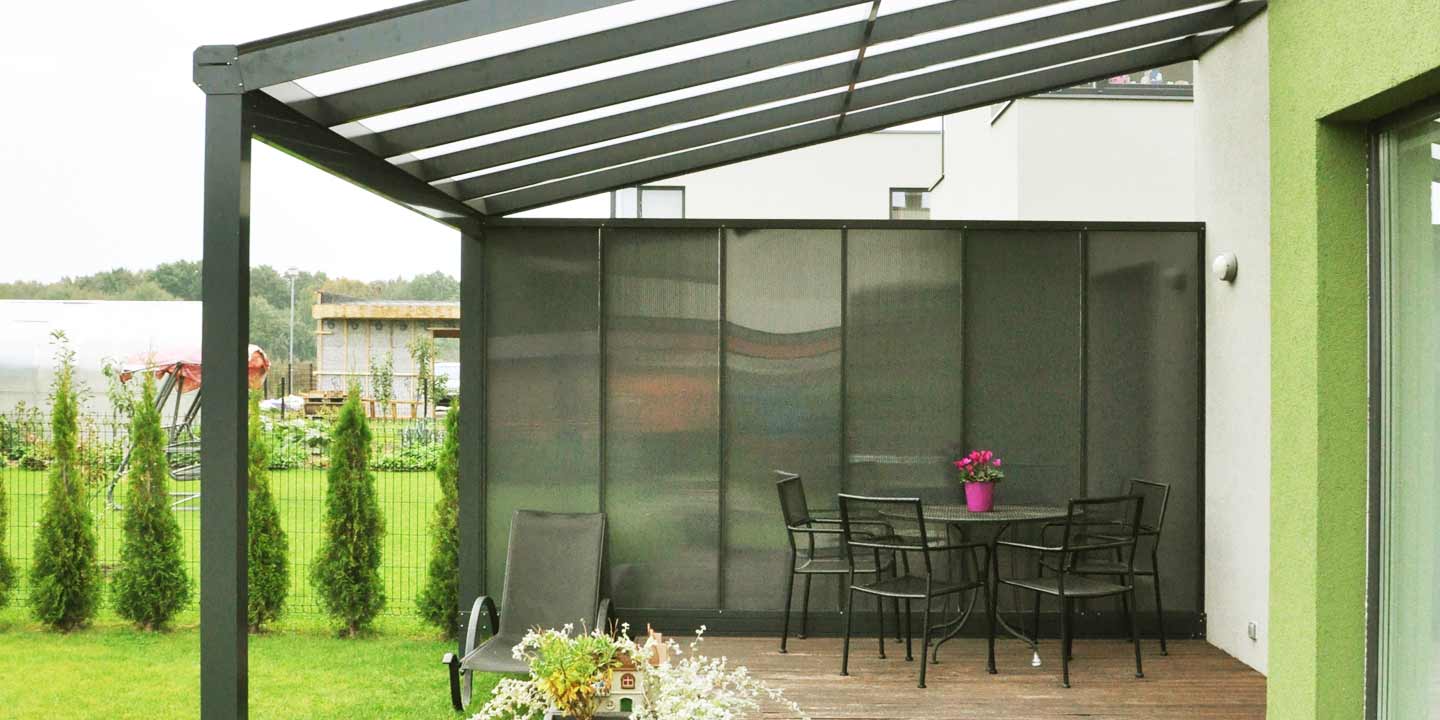

• Polycarbonate: multi-wall 16 mm
• Glazing type: Single-pane, Double-pane
• Segments: Fixed

---

---

Segment size (min. - max.*):

• Width (W): 500 - 1100 mm
• Height (H): 500 - 2500 mm

* Possible restrictions and specific options.

The number of segments in a wall opening, as well as their precise width (W) and height (H), is determined during the pre-production design stage. Considerations include the width and height of the wall opening, the customer's requirements, system mounting, and other relevant conditions.

Specification of the ALU-FIX system segments:

-

---

Fig. Variations in the available size (WxH, mm), number and placement of ALU-FIX system segments.

Note: When placing an order/query, please specify the desired code (marked in blue) for the segment's type, number, and layout.

Structure:

• Aluminum, powder coated

Colour:

Our structures are crafted using a variety of aluminium profiles in RAL finish (Qualicoat), and structural painting in three standard colours:

• RAL7016 (anthracite grey),
• RAL8019 (brown), and
• RAL9016 (white).
  ---

Can't find the size or combination you need?

Please submit your request by filling out the query form below. We will assess your needs and provide you with our custom offer.
